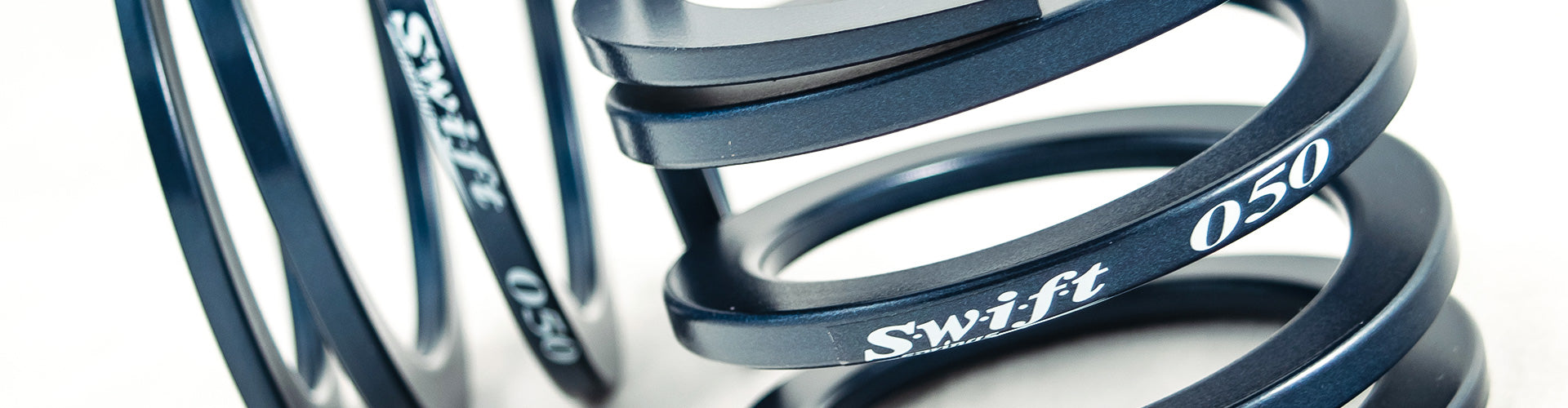

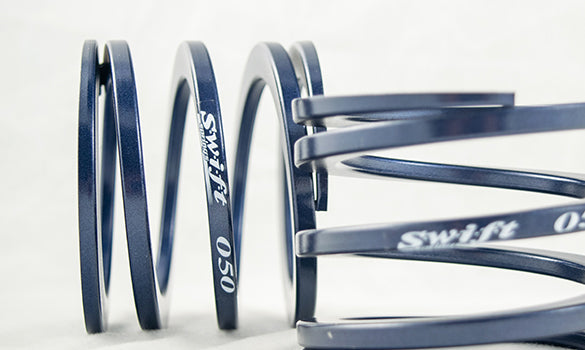

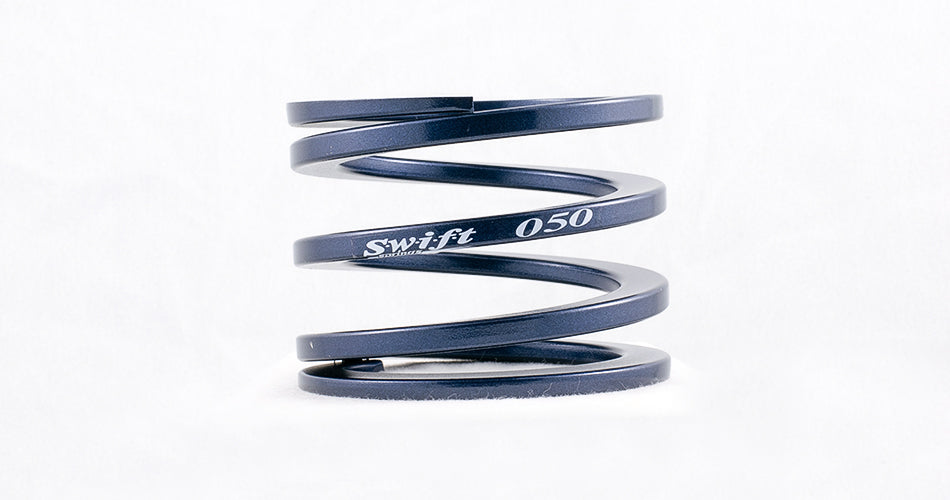

Assist Springs.

Get the best of both worlds, swift assist springs provide a dynamic step linear rate.
Assist Springs
Helper Springs

Like our helper springs, the assist springs are designed to be fully compressed at static height. Every one of our assist springs compress to the exact same height. This allows drivers to change assist springs without resetting the perch on the coilovers so the ride height isn’t affected. Heavier rates of assist springs over helper springs are used to fine tune the rebound travel of the shock. These springs can also help preventing a loss of traction due to inside wheel lift during hard cornering.

Assist Springs
Assist Spring
Assist Springs

DUE TO CONTINUED ENGINEERING ADVANCES, PRODUCT SPECIFICATION MAY CHANGE WITHOUT NOTICE.

Assist Springs

Assist Springs

PART # SPRING RATE LENGTH STROKE FCH CW
kgf/mm lbs/inch mm inch mm inch mm inch mm lbs
60mm(2.25") comes with Stack Spring Adapter
A60-072-040 4.0 224 72 2.8 42 1.7 30 1.2 165 364
A60-072-050 5.0 280 72 2.8 42 1.7 30 1.2 210 463
A60-072-060 6.0 336 72 2.8 42 1.7 30 1.2 280 617
65mm(2.5") comes with Stack Spring Adapter
A65-068-040 4.0 224 68 2.7 41 1.6 27 1.1 155 342
A65-068-050 5.0 280 68 2.7 41 1.6 27 1.1 200 441
A65-068-060 6.0 336 68 2.7 41 1.6 27 1.1 260 573

Part Number
Spring Rate
Length
Stroke
FCH
CW
kgf/mm
lbs/inch
mm
inch
mm
inch
mm
inch
mm
lbs
60mm(2.25") comes with Stack Spring Adapter
A60-072-040
4.0
224
72
2.8
42
1.7
30
1.2
165
364
A60-072-050
5.0
280
72
2.8
42
1.7
30
1.2
210
463
A60-072-060
6.0
336
72
2.8
42
1.7
30
1.2
280
617
65mm(2.5") comes with Stack Spring Adapter
A65-068-040
4.0
224
68
2.7
41
1.6
27
1.1
155
342
A65-068-050
5.0
280
68
2.7
41
1.6
27
1.1
200
441
A65-068-060
6.0
336
68
2.7
41
1.6
27
1.1
260
573

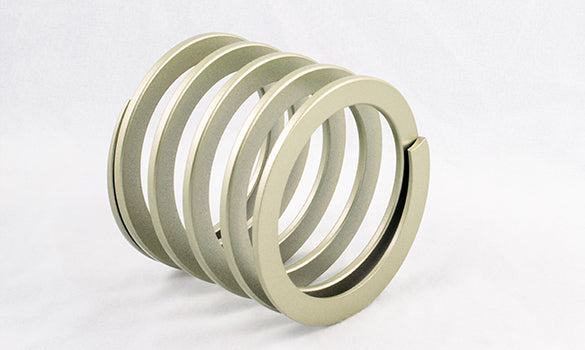

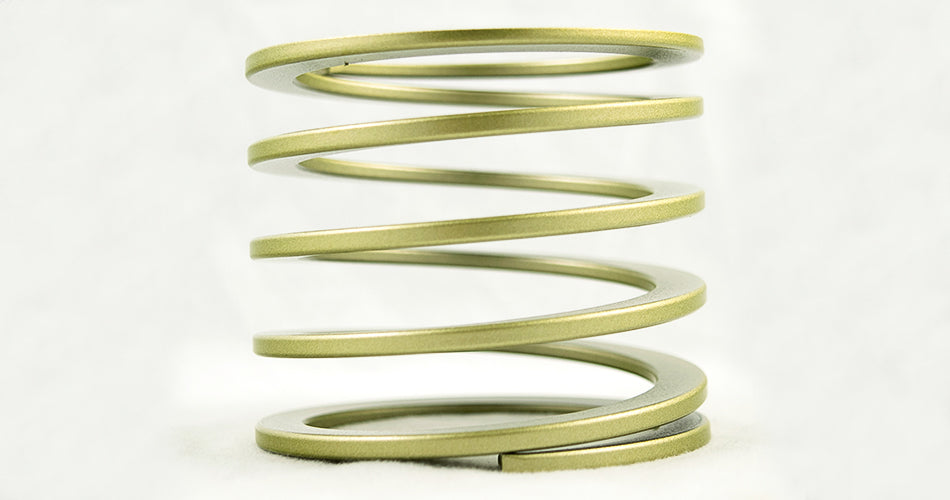

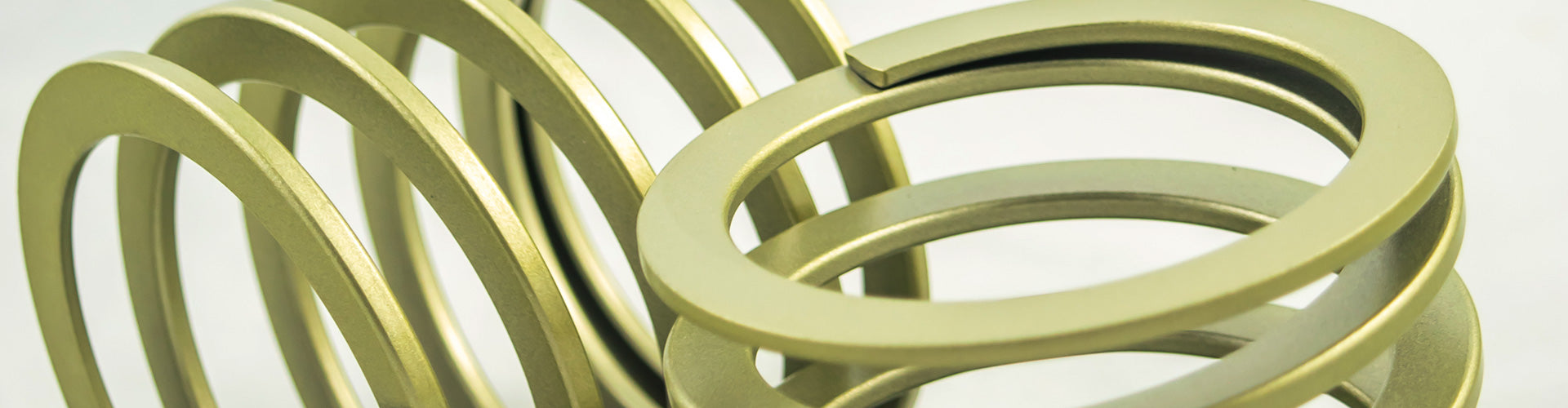

Helper Springs

Prevent dismounting your springs without changing springs rates.
Assist Springs
Helper Springs

Unlike our assist springs, our helper springs are specifically designed to have a minimal effect on the springs rate of the main coilover springs. Helper springs allow the springs to stay on mounted on the coilover perch when the shock is under negative or zero load, also known as droop travel. It is ideal to run helper springs on setups where you cannot preload the main spring due to height issues or when experiencing springs coming loose from the coilover perch.

Helper Springs
Helper Spring
Helper Spring

DUE TO CONTINUED ENGINEERING ADVANCES, PRODUCT SPECIFICATION MAY CHANGE WITHOUT NOTICE.

Helper Springs

PART # SPRING RATE LENGTH STROKE FCH CW
kgf/mm lbs/inch mm inch mm inch mm inch mm lbs
Flat Wire Helper Springs - 60mm(2.25") comes with Stack Spring Adapter
H60-135-0008 0.1 4 135 5.3 118 4.6 17 0.7 10 22
H60-070-008 0.8 45 70 2.8 43 1.7 27 1.1 40 88
H60-060-015 1.5 84 60 2.4 41 1.6 19 0.7 70 154
H60-060-030 3.0 168 60 2.4 38 1.5 22 0.9 120 265
Flat Wire Helper Springs - 65mm(2.5") comes with Stack Spring Adapter
H65-135-0008 0.08 4 135 5.3 118 4.6 17 0.7 10 22
H65-070-008 0.8 45 70 2.8 46 1.8 24 0.9 43 95
H65-060-015 1.5 84 60 2.4 39 1.5 21 0.8 70 154
H65-060-030 3.0 168 60 2.4 36 1.4 24 0.9 120 265
Flat Wire Helper Springs - 70mm(2.75")
H70-070-008 0.8 45 70 2.8 48 1.9 22 0.9 45 99
Flat Wire Helper Springs - 2.5"(65mm)
H025-135-0008 0.08 4 135 5.3 118 4.6 17 0.7 10 22
H025-152-050 0.9 50 152 6.0 107 4.2 45 1.8 97 214
H025-127-075 1.34 75 127 5.0 94 3.7 33 1.3 128 282
H025-127-100 1.78 100 127 5.0 93 3.7 34 1.3 167 368
Flat Wire Helper Springs - 1.88"
H188-035-0005 0.1 5 89 3.5 66 2.6 23 0.9 - 0.35
H188-035-0012 0.2 12 89 3.5 66 2.6 23 0.9 - 0.4
H188-035-0025 0.4 25 89 3.5 66 2.6 23 0.9 - 0.57
H188-035-0050 0.9 50 89 3.5 64 2.5 25 1.0 - 0.64
Round Wire Helper Springs -3.0" (76mm)
H030-040-250 4.5 250 102 4.0 59 2.3 43 1.7 265 584

Helper Springs


Part Number
Spring Rate
Length
Stroke
FCH
CW
kgf/mm
lbs/inch
mm
inch
mm
inch
mm
inch
mm
lbs
Flat Wire Helper Springs - 60mm(2.25") comes with Stack Spring Adapter
H60-135-0008
0.1
4
135
5.3
118
4.6
17
0.7
10
22
H60-070-008
0.8
45
70
2.8
43
1.7
27
1.1
40
88
H60-060-015
1.5
84
60
2.4
41
1.6
19
0.7
70
154
H60-060-030
3.0
168
60
2.4
38
1.5
22
0.9
120
265
Flat Wire Helper Springs - 65mm(2.5") comes with Stack Spring Adapter
H65-135-0008
0.08
4
135
5.3
118
4.6
17
0.7
10
22
H65-070-008
0.8
45
70
2.8
46
1.8
24
0.9
43
95
H65-060-015
1.5
84
60
2.4
39
1.5
21
0.8
70
154
H65-060-030
3.0
168
60
2.4
36
1.4
24
0.9
120
265
Flat Wire Helper Springs70mm(2.75")
H70-070-008
0.8
45
70
2.8
48
1.9
22
0.9
45
99
Flat Wire Helper Springs - 2.5"(65mm)
H025-135-0008
0.08
4
135
5.3
118
4.6
17
0.7
10
22
H025-152-050
0.9
50
152
6.0
107
4.2
45
1.8
97
214
H025-127-075
.1.34
75
127
5.0
94
3.7
33
1.3
128
282
H025-127-100
1.78
100
127
5.0
93
3.7
34
1.3
167
368
Flat Wire Helper Springs - 1.88"
H188-035-0005
0.1
5
89
3.5
66
2.6
23
0.9
-
0.35
H188-035-0012
0.2
12
89
3.5
66
2.6
23
0.9
-
0.4
H188-035-0025
0.4
25
89
3.5
66
2.6
23
0.9
-
0.57
H188-035-0050
0.9
50
89
3.5
64
2.5
25
1.0
-
0.64
Round Wire Helper Springs - 3.0"(76mm)
H030-040-250
4.5
250
102
4.0
59
2.3
43
1.7
265
584
